Beginning of all newness in the world Again. Everything. Newly.: DIO finally launched UV Activator2 officially,
the next generation surface processing system with integrated innovative technologies that have not been experienced in the past.
UV Activator2 is a surface processing system that turns the SLA-surface processed titanium surface into hydrophilic
in nature by removing a diverse range of organic impurities adsorbed onto the surface such as
hydrocarbon through photo-radiation processing.
It is recognized as the next generation surface finishing method with both advantages of the dental titanium surface processing method
researched for execution at processing unit until now and acquisition of hydrophilicity of the surface advantageous for osseointegration.

In addition, UV Activator2 drastically reduced ‘UV Irradiation Time’ from 20 minutes to 20 seconds by
perfectly supplementing the UV ray penetration, absorption and losses of the existing system.

Along with the assessment that innovation has been added to existing innovation,
many clinicians in Korea are already looking forward to it.

20 Miraculous Seconds!

Hydrophilic Test (Kyungpook National University)

Before UV Activation

Liquids form drops,
fail to penetrate threads

After UV irradiation

Liquids are drawn to surfaces
and don’t form drops!

UV activation methodology comparison


Division	Wet	Dry
Division	Wet	UV-A wavelength	UV-C wavelength
Irradiation Method Irradiation Date	Immersion and storageduring the production	UV activation before use	UV activation before use
Irradiation Time		Over 20 hours	Only 20 seconds

20초의 기적!: 20초만에 티타늄 표면 개질 (소수성 → 친수성)

개질[改質, Reforming]: 촉매의 작용에 의하여 탄화수소의 구조를 변화시켜 표면을 개선시킴

Utilization of the UV Activator

Renders the titanium surface FREE of any organic material,
including all hydrocarbons!

Before UV activation

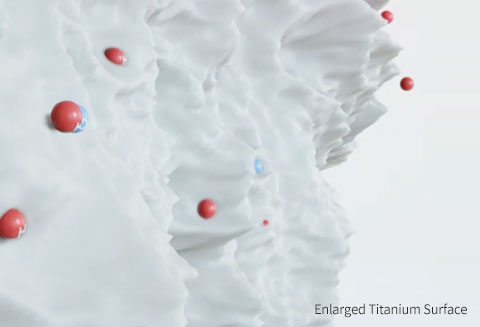

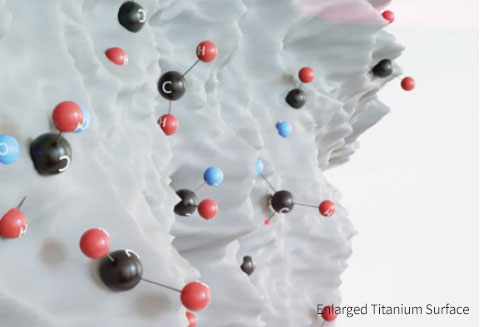

Titanium surfaces acquire organic debris,
like hydrocarbons, over time.

Effect of UV Photofunctionalization on Osseointegration in Aged Rats
[Professor Takahiro Ogawa et al., UCLA Dental University]

After UV irradiation

The UV exposure renders the surface hydrophilic
by removing all organic compounds through
photocatalytic action

Renders the titanium surface FREE of any organic material, including all hydrocarbons!

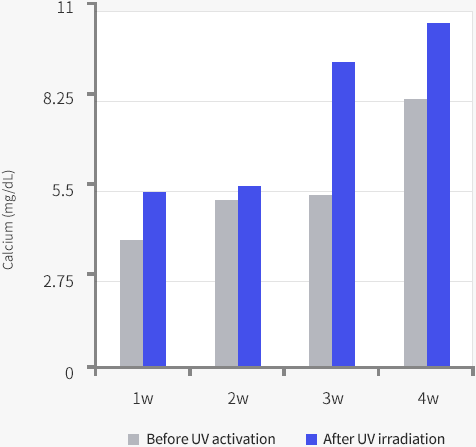

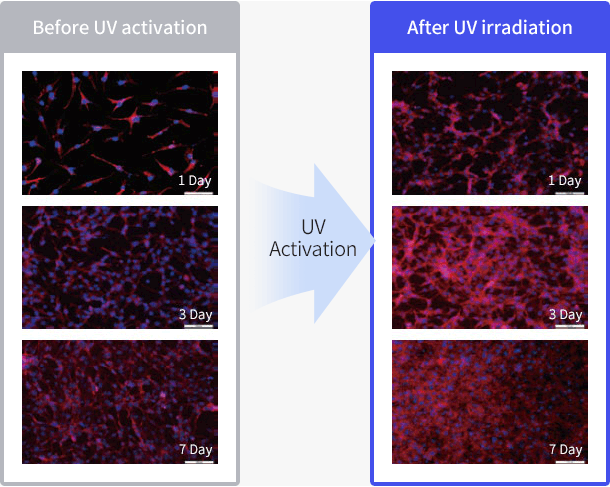

An active increase is demonstrated in both cell growth rate and bone formation.: MC3T3-E1 Proliferation; Cell growth rate increased sharply after
day 3 for UV photofunctionalized implants

Renders the titanium surface FREE of any
organic material, including all hydrocarbons!

An active increase is demonstrated in both cell growth rate and bone formation.: MC3T3-E1 Mineralization; Bone formationality increased rapidly within 2~3 weeks
for UV irradiate implants.
Bone formationality increased rapidly within 3~4 weeks
for implants that were not UV irradiated.

Design & Spec.

2 Color(Pink/Blue) type

On/Off button

Thorough 360˚ degree cylinder of UV light!

Dry UV-C wavelength

Start button

Door button

Size : 6.9” X 10.3”X14.2”
Power consumption: : 160W maximum
Weight : 13.2 lbs.
Recommended UV exposure : 20 seconds
Activates one fixture per cycle

Clinical Research Articles

Overcome the Limitation in
Surface Processing of Implant!
UV Irradiation

Min-Seok Oh, General Manager, Daejeon Sun Dental Hospital

Clinical Case Report

01Soft bone Case

UV Implant Placement Using Guided Surgery on Weak Bone: Newton Dental Hospital Dr. Hyunlak Son

02Immediate Placement after
Extraction in Sinus

Comparing bone integration strength of two different implant fextures: Millennium Yonsei Dental Hospital Dr. Younghoon Woo

03Maxillary Anterior Case

Maxillary Anterior Case: Yeosu More Dental Hospital Dr. Jeongrok Jang

What kind of dentist are you?
Digital will change as much as you though.

Try it.
Your own new digital solution that your patients will fall in love with.

Ultimately digital, ultimately DIO

UV Activator
Utilization of the UV Activator
Design & Spec.
clinical Research Articles
Clinical Case Report

Tooth No.	Imp. Size	Bone Density	ISQ 1st OP	ISQ 4Week
#36	DIO UVØ5.0 X 11.5	D3	76	85

Clinical Case Report: Immediate Placement after Extraction in Sinus

Comparing bone integration strength of two different implant fixtures: Millennium Yonsei Dental Hospital Dr. Younghoon Woo

50 year old Female / Generalized moderate to severe periodontitis / #16 missing, #17, #26 mob++
Patient visited clinic due to pain and mobility of #17. Extracted #16 six months ago
Extraction of #17 due to severe periodontitis
Bone grafting after lifting sinus 2~3mm through crestal approach
#16 UF(II) Ø4.5X10mm HSA, Placement of #17 using UF(II) Ø5.0X10mm UV Fixture
Bone Grafting of InterOss 0.25g in #17 dehiscence

Panorama
6 months after extraction of #16
Severe periodontitis displayed in #17
#16 CT
D3-D4 bone
8mm buccal
8mm palatal
#17CT
D3-D4 bone
Buccal dehiscence
4mm buccal
8mm palatal
Bone Grafting Procedure
Post-op Panorama
Oral Image post-op 2 months


Tooth No.	Imp. Size	Bone Density	TorqueOP	OP(BL/MD)	1Week	4Week	8Week
#16	DIO HSA Ø4.5 X 10	D3~D4	30N	80/80	80/80	80/80	81/81
#17	DIO UV Ø5.0 X 10	D3~D4	25N	30/73	30/73	32/75	37/82

Comparison of binding power between two different implants by placing UV implant in #17 and SA implant in #16.
There were not complications except for typical edema and pain. ISQ value towards buccolingual (BL) and mesiodistal (MD) of implant were checked on the day of surgery, 1week later, 4 weeks later and 8 weeks later.
It was observed that the ISQ value of SA treated implant in #16 did not change substantially, but ISQ value of #17 implant irradiated with UV light right before placement-for 15 minutes-increased continuously from 4 weeks to 8 weeks.
As a result, fast osseointegration in weak or insufficient bone can be aided.

Clinical Case Report: Maxillary Anterior Case

Maxillary Anterior Case: Yeosu More Dental Hospital Dr. Jeongrok Jang

Tooth mobility in #11 and 21 was displayed 4 years ago when patient first visited the hospital, but patient refused treatment.
Therefore, the area was fixed using G-fix, then due to repeated failure, patient finally decided to get implant surgery.

Panoramic view prior to the procedure
#12
#11
#21
#22
Oral image before surgery
Scanning is required for the fabrication of DIOnavi Surgical Guides. DIO resin markers attached in response to difficulty in CT merging due to artifacts of existing prosthesis

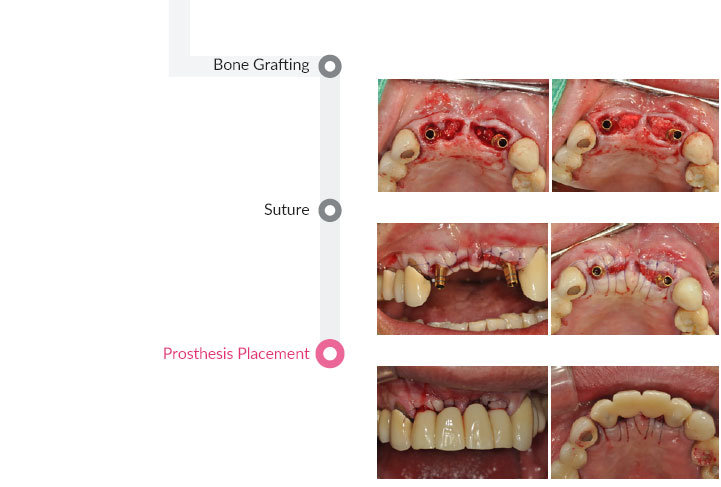

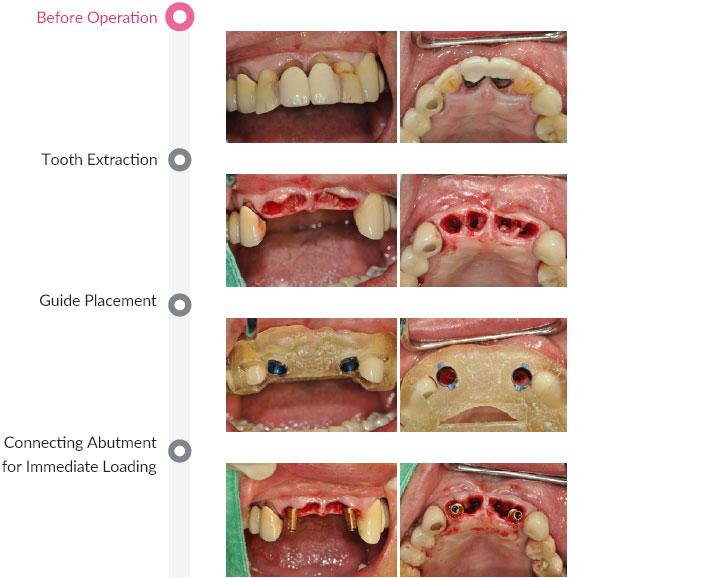

[DIOnavi Surgical Procedure]

Panorama after surgery
Oral image after 2 weeks
Panorama after the final prosthesis
Oral image after the final prosthesis


Tooth No.	Imp. Size	1st OP	after 4 months
#12	DIO UV Ø4.0 X 11.5	72	80
#22	DIO UV Ø4.0 X 11.5	72	80

Final prosthesis was planned to be loaded two months after surgery using UV implants, but was instead loaded after 4 months due to personal reasons.
